Unlocking Precision: How BCMC's Advanced Waterjet Stone Cutting Machine is Revolutionizing the Industry
In the field of stone processing, accuracy plays a crucial role. Whether it's elaborate marble designs for high-end hotels or sturdy granite surfaces for contemporary residences, the requirement for perfect, intricate cuts has reached unprecedented levels. Conventional techniques frequently do not meet expectations, resulting in chips, heat damage, or restricting creative options. This is the point at which waterjet cutting technology demonstrates its superiority. However, not every waterjet is of the same quality.
Today, we will thoroughly examine the remarkable engineering behind the waterjet stone cutting equipment provided by Fujian BAICHAO Machinery Co., Ltd. We will investigate how its state-of-the-art characteristics, supported by reliable engineering data, position it as a leading choice for stone fabricators in search of unmatched precision, flexibility, and dependability.
Why a Waterjet Stone Cutting Machine is a Game-Changer
Prior to analyzing Hualong's particular model, it is essential to grasp the underlying reasons. A waterjet stone cutting machine operates by utilizing an extremely pressurized jet of water combined with abrasive garnet to wear away material. This technique, referred to as abrasive waterjet cutting, provides distinct benefits for stone:
No Heat-Affected Zone (HAZ): In contrast to laser or plasma methods, waterjet cutting operates at low temperatures. This approach avoids thermal stress, small fractures, or color changes in delicate materials such as marble or quartzite.
Unmatched Versatility: The technology can slice through nearly any substance-from the hardest granite to fragile mosaic tiles-without needing to switch out tools.
Exceptional Precision: It can create detailed forms, pointed corners, and complicated designs that are unachievable with saws.
Environmentally Friendly: This technique produces very little dust and utilizes water along with natural sand as abrasives.

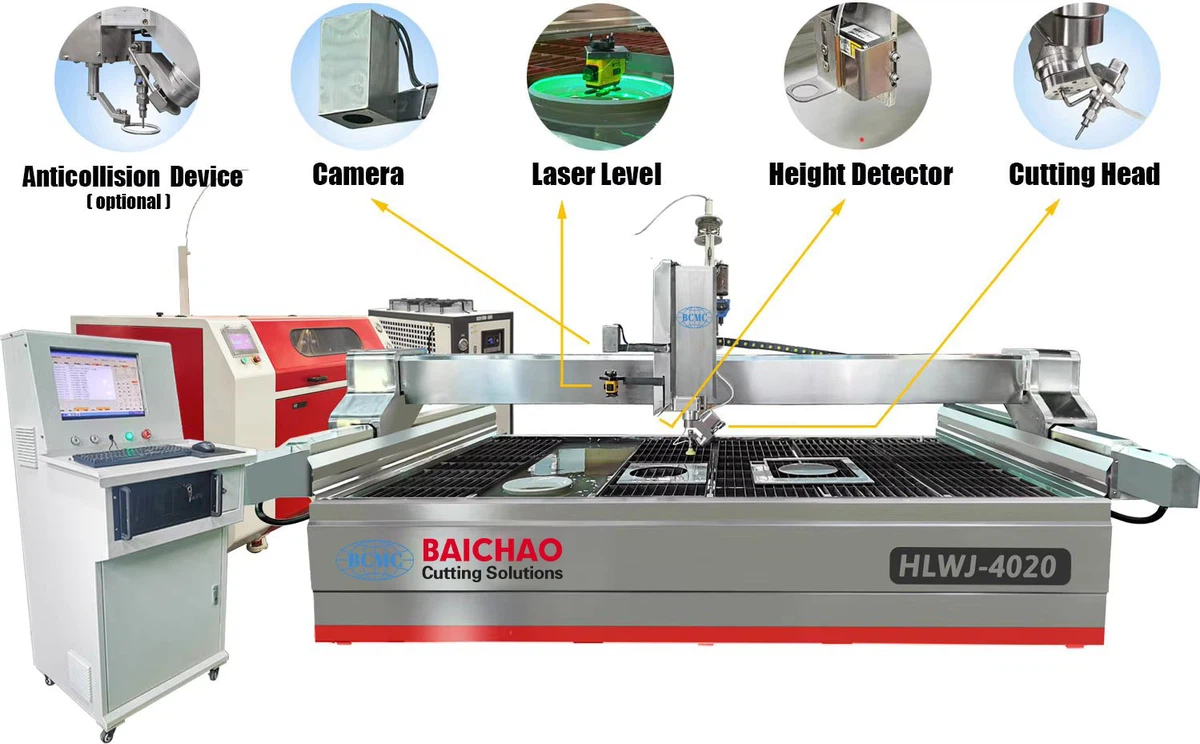

BCMC Waterjet Stone Cutting Machine: A Deep Dive into Core Technologies
The effectiveness of a waterjet stone cutting device relies on three main components: the ability to produce pressure, the capability to manage the cutting head, and the precision in its movement. Hualong stands out in each of these areas.
1. The Heart of Power: The High-Pressure System
The pressure generated is the lifeblood of the machine. Hualong's system is engineered for relentless stability.
●Triplex Intensifier Configuration: Rather than utilizing a single or duplex pump, Hualong incorporates a triplex intensifier. This arrangement guarantees a more stable and uniform flow of ultra-high-pressure water, reaching an impressive 420 MPa (60,000 PSI). When it comes to cutting stone, this enables the effortless slicing of thick granite or quartz slabs.
●Robust Construction and Enhanced Sealing: The cylinder of the intensifier is manufactured through monoblock forging, providing exceptional strength to endure continuous high pressure. Along with a ceramic plunger sealing system, the mechanism preserves its integrity during extended operation. What does this mean? It results in pressure variations controlled within ±2%. This level of stability is vital for maintaining consistent cut quality from the initial inch to the final one, particularly on large stone slabs.
2. The Brain of Precision: The Intelligent Cutting Head
Where the pressure stream meets the stone, precision is paramount. Hualong's cutting head is a masterpiece of design.
●Optimized Abrasive Mixing: The mixing chamber is constructed from a durable alloy that provides remarkable resistance to wear. More significantly, the internal flow pathways have undergone refinement through CFD Computational Fluid Dynamics optimization. This improvement in engineering enhances the consistency of abrasive mixing by around 15%. For a stone fabricator, this results in a straighter cut edge and a longer duration for the focusing nozzle.
●Automatic Nozzle Alignment: A frequent issue encountered is the misalignment of the nozzle, which results in tapered cuts. Hualong's nozzle module includes an automatic centering mechanism that maintains perfect alignment of the abrasive stream, with an offset error lower than 0.1mm. This ensures that edges are perpendicular and fits are optimal each time.
●Collision Protection: Unforeseen incidents can occur. When the cutting head meets an obstruction or an uneven stone surface, the system's collision avoidance feature engages, initiating an emergency retraction in just 0.3 seconds. This anticipatory feature helps avert expensive damage to both the machine and the workpiece.
3. The Framework of Accuracy: The Motion Control System
A powerful stream is useless if it can't be guided accurately. Hualong's motion system is built for speed and intelligence.
●High-Speed Direct Drive: By employing linear motor drives, this machine can reach an impressive travel speed of 25 meters per minute. This capability lessens the time spent not cutting, resulting in enhanced productivity when working with large stone slabs.
●Vision Positioning: Job setup is now quicker and more precise. A built-in vision positioning system employs a CCD camera to effortlessly recognize the outline of the workpiece. This process removes errors associated with manual measurements and guarantees that the digital design aligns flawlessly with the natural patterns of the stone, which is vital for premium projects.
●Smart Path Optimization: The integrated software features an algorithm designed for optimizing cutting paths that automatically determines the best sequence for cutting. This not only cuts down on travel time but also decreases the use of abrasives and keeps cut parts stable during the operation, maintaining their integrity until the final cut is made.
Proven Performance: Application Data for Stone Fabricators
Although the data given pertains to 30mm stainless steel, it effectively showcases the machinery's ability, which directly applies to cutting stone.
●Cutting Precision: ±0.08mm: This degree of precision is outstanding for stone, facilitating closely fitting joints in intricate architectural structures.
●Surface Roughness: Ra 3.2μm: A finer cut edge on stone results in reduced time required for additional polishing, which directly affects labor expenses and production rates.
●Average Water Consumption: 1.8L/min: In spite of its capabilities, the machine functions with impressive efficiency, maintaining the affordability of operational expenses.
For stone-specific applications, this waterjet stone cutting machine is ideal for:
●Creating intricate countertops with drainboards and sink cutouts.
●Producing detailed medallions, logos, and art pieces from marble or slate.
●Cutting thick granite for monuments or architectural elements.
●Processing fragile materials like glass mosaics or travertine without breakage.
Conclusion: Is the Hualong Waterjet Stone Cutting Machine Right for You?
User reviews consistently emphasize the machine's reliability during extended use, which is crucial for manufacturing settings. The secret to maximizing its capabilities is achieving the right parameter settings according to the thickness of the material and the finish required.
For stone fabricators eager to enhance their skills, elevate the quality of their finishes, and undertake more intricate, valuable projects, investing in a state-of-the-art waterjet stone cutting machine is a sensible decision. The model from Fujian BAICHAO Mechanical Co., Ltd., featuring a strong pressure system, smart cutting head, and accurate motion control, stands as an impressive engineering solution tailored to cope with the tough requirements of today's stone sector. It serves as more than just an instrument; it acts as a collaboration in accuracy.
Are you prepared to elevate your stone fabrication skills? Delve into the technical details of Hualong's waterjet stone cutting machine and find out how its engineering superiority can give you a competitive edge.
