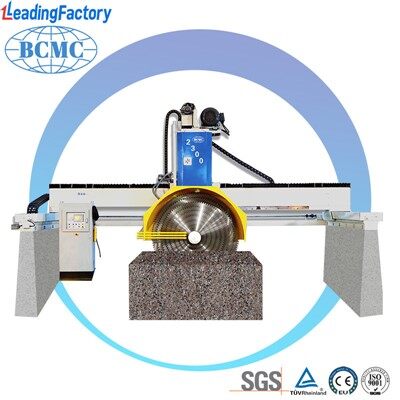

Multi blade Stone Cutting Machine

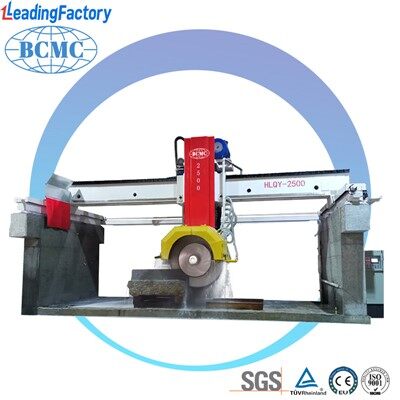

The Bridge Hydraulic Stone Cutter features a long-span bridge design, incorporating side beams with sealed, oil-drenched guide rails. It has an automatic displacement splice, and its lifting system uses either hydraulic or screw mechanisms to ensure the tool lifts and drops smoothly and quickly. The transverse cutter is controlled by a frequency converter, allowing for continuous speed adjustments. It offers automatic walking for cutting and includes special protection for the lifting and side beam transmission. During operation, raw materials can be placed directly on the ground, eliminating the need for a trolley and reducing maintenance expenses. This machine is designed for precision processing, consistent performance, high levels of automation in production, and is easy to install, operate, and maintain, aligning with the global demands of stone processing.

1) The Siemens smart PLC control system allows for high automation performance and is user-friendly.

2) The machine uses four supporting pillars for spindle sliding, ensuring a stable structure and reliable lifting.

3) A two-slider framework operates in sync via a screw, providing excellent stiffness and stability.

4) The sliding system on the X and Y axes employs linear guides and racks, both lubricated in an oil bath, resulting in smooth operation and high productivity.

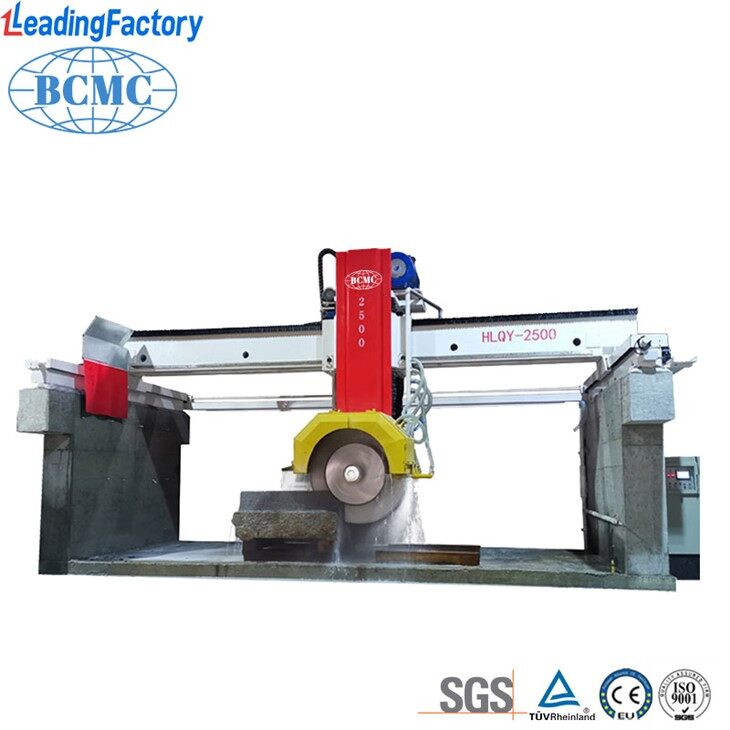

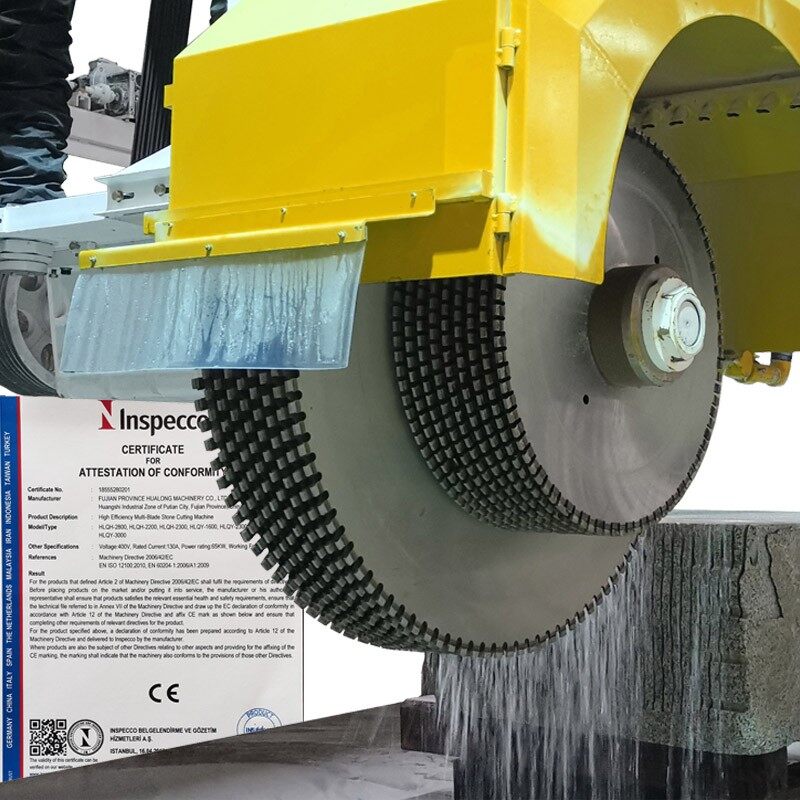

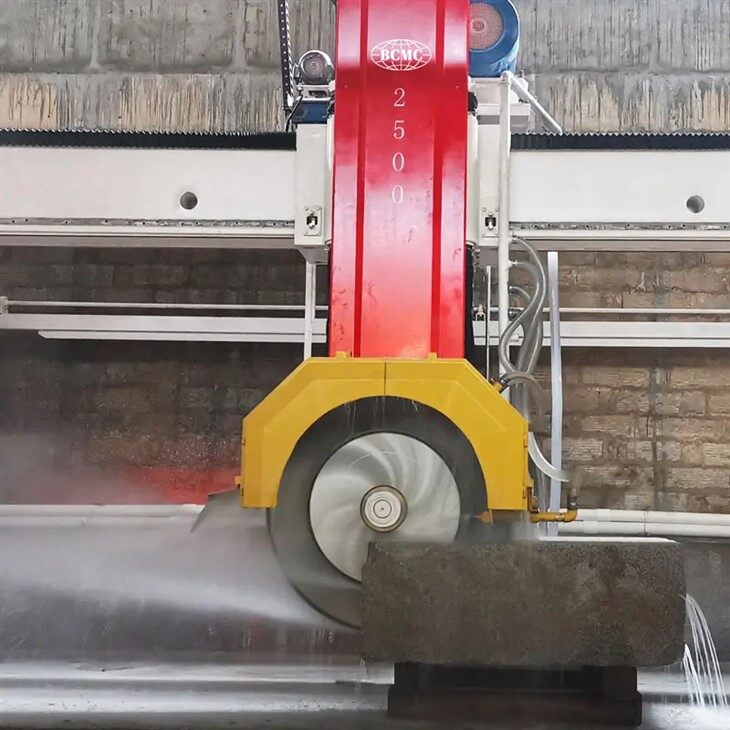

Precision and Power: The HLQY-2500 Industrial Marble Cutting Machine

Engineered for robust performance and exceptional accuracy, the HLQY-2500 Industrial Marble Cutting Machine from Fujian Baichao Machinery Co., Ltd. is designed to meet the demanding requirements of modern stone fabrication shops. This machine is built to handle large-scale, continuous cutting operations with unwavering reliability.

Its heavy-duty structure ensures stable and vibration-free operation, which is critical for achieving clean, precise cuts on marble slabs and other natural stone materials. The HLQY-2500 is equipped with a powerful motor and a high-precision cutting head, delivering efficiency and consistency for your most important projects.

Ideal for creating countertops, tiles, and architectural elements, this industrial marble cutting machine enhances productivity while minimizing material waste. Discover the difference that professional-grade equipment from Hualong Machinery can make for your business.

High-precision cutting ensures flawless results.
Powerful motor designed for continuous operation.
Optimized for handling large marble slabs.
Built for enhanced productivity and reduced operational costs.

Machine Parts

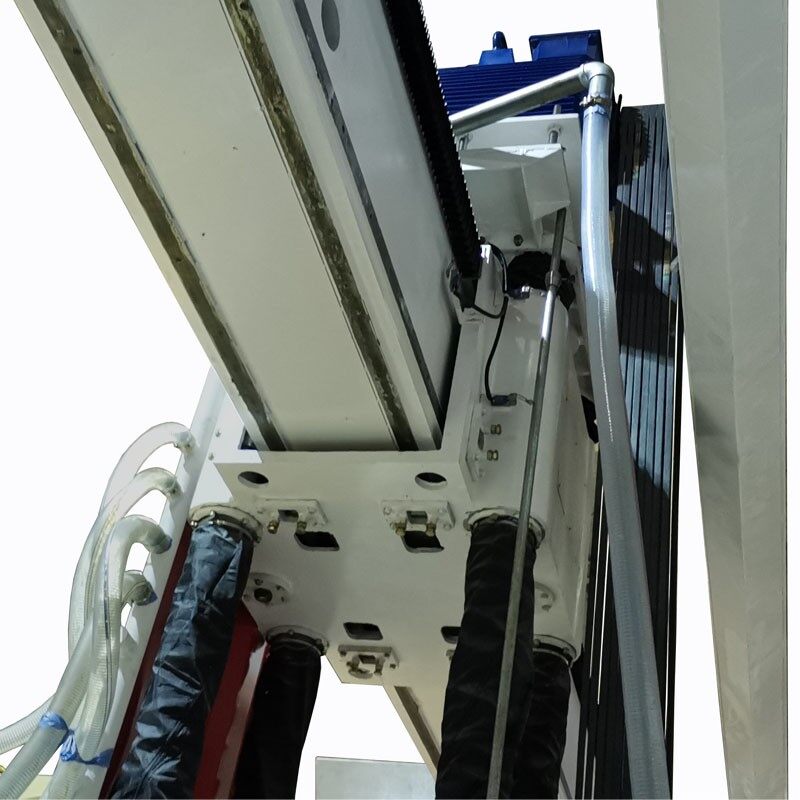

Name: 6 big strong pilllars

Use: sliding guide for spindle

Covered by fabric for preventing pollution.

Linear Guide

Brand: Hiwin
Original: Taiwan, China
Famous products, top quality use on crossbeam and carling for good performance.

Machine Parts

Name: Circle Blade
Original: China

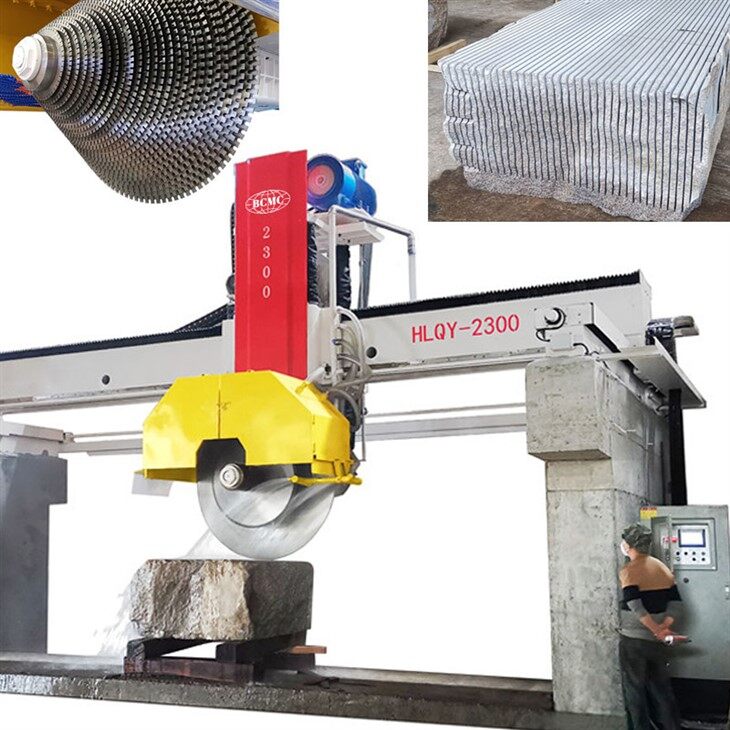

Up to 18 pieces of blade can be hanged for efficient production of thin slabs.

Electronic Control System

Brand: Siemens
Original: Germany
Famous product, equipped for good stability and high automation performance.

Technical parameters

Model		HLQY-1600	HLQY-2500	HLQY-3000
Max. blade diameter	mm	Φ1600	Φ2500	Φ3000
Cross beam type			A       /     B	A       /     B
Cross beam length	mm	6000	7600 / 8300	8300 / 9300
Cutting length	mm	3500	3500	3500
Cutting wideth	mm	2000	2000	2000
Lifting stroke	mm	800	1350	1350
Power of main motor	kw	55 (4P)	55 (4P)	55 (6P)
Power of pump motor	kw	4	4	4
Power of stroke motor	kw	2.2	2.2	2.2
Power of vertical motor	kw	1.1	1.1	1.1
Gross power	kw	62.3	62.3	62.3
Gross weight		10000	13000/14000	14000/15500
Dimensiona(L x W x H)		650x500x400	780x500x450	780x500x450

what is block cutting machine?

A machine designed for cutting blocks takes large materials and reduces them to smaller, more manageable sizes. Such machines are prevalent in sectors like construction, mining, and manufacturing. Their design and features may differ based on the material being processed and the level of accuracy needed.

For instance:

Stone Block Cutting Machine: This category is specifically for slicing stone or marble into slabs or tiles, typically using a diamond blade or wire saw to overcome the material's hardness.

Concrete Block Cutting Machine: This type focuses on cutting concrete blocks or bricks and is commonly equipped with a diamond blade; these machines can be operated manually or automatically.

Wood Block Cutting Machine: In woodworking, these machines are utilized to divide large wooden blocks into smaller components for further use.

Metal Block Cutting Machine: These are employed to cut metal blocks or billets, often utilizing a band saw or a high-precision water jet cutter.

Selecting the right machine is influenced by aspects such as the kind of material, the thickness of the desired cut, and the production volume. Should you have a particular application or material in mind, I can offer more specific insights into the most suitable machines for your needs!
