Product Description

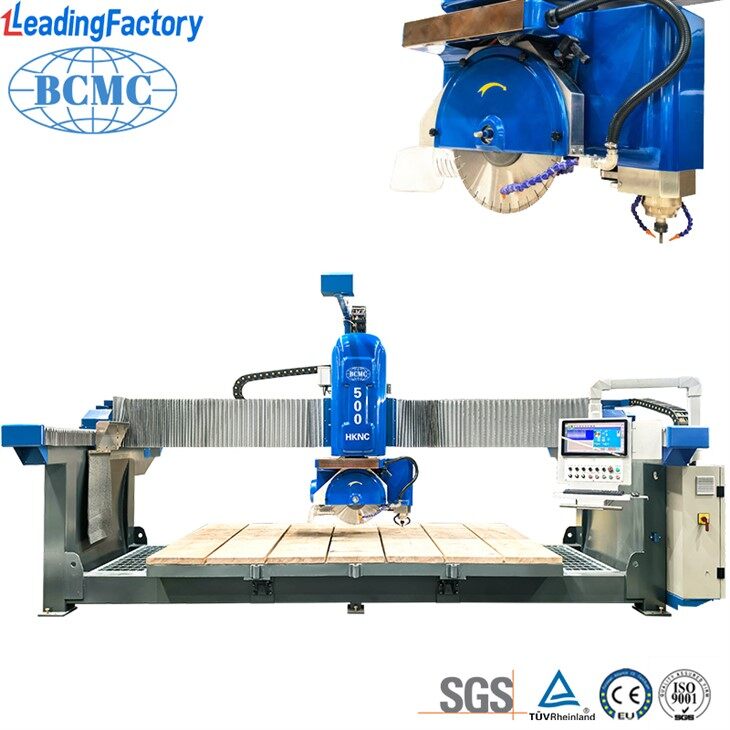

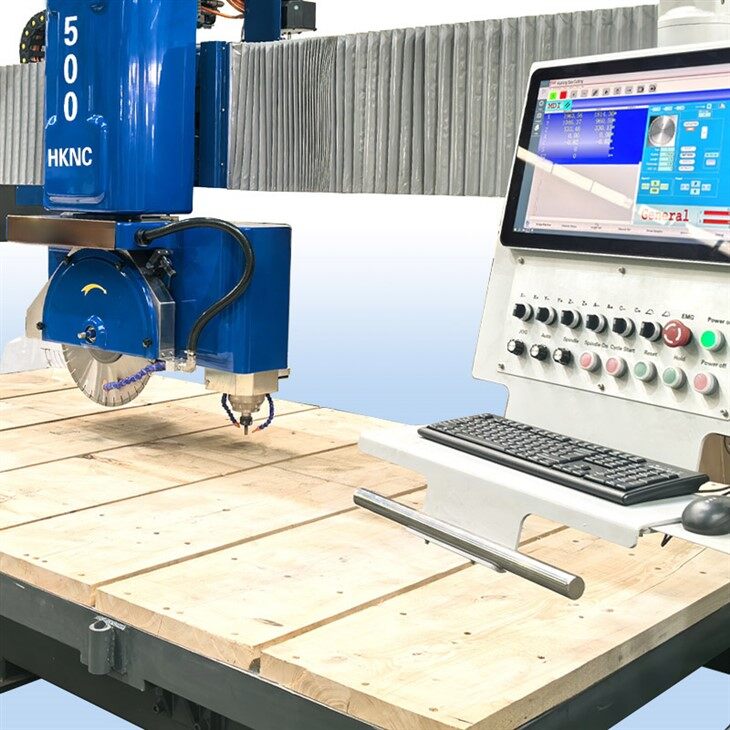

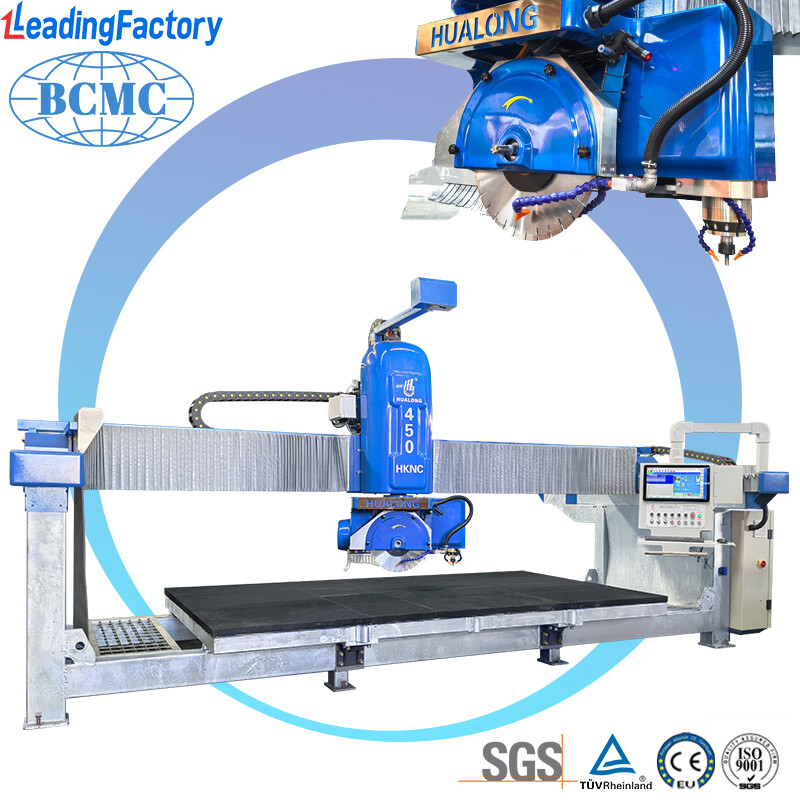

Bridge Saw Machine Granite is a mechanical equipment specially used for cutting hard stones such as granite, and is widely used in the stone processing industry.
| Parameter | Specification |
|---|---|
| Control System | Italian ESA 5-Axis CNC |
| Interpolation Type | 5-Axis Linkage (Rotation + Tilt) |
| Blade Tilt Angle | 0°–90° |
| Worktable Tilt Angle | 0°–85° (Optional) |
| Spindle Type | Multi-Function Electric Spindle (Quick Change) |
| Spindle Speed | 24,000 RPM |
| Machining Functions | Cutting, Drilling, Milling, Engraving, 3D Sculpting |
| Material Measurement | Thickness Probe |
| Positioning Method | Onboard Camera |
| Auto Loading System | Vacuum Suction (Optional) |
| Auto Unloading System | Vacuum Suction |
| Blade Presetter | Auto Blade Diameter Measurement |
| Software System | Built-in CAD/CAM with Toolpath Optimization |
| Positioning Accuracy | ±0.02 mm |
| Process Control | Real-Time Sensor-Based Adaptive Control |
Main Features
High-Precision Multi-Axis Cutting
Five-axis linkage combined with the Italian ESA CNC system ensures cutting accuracy of less than 0.02mm for complex curved and special-shaped surfaces.
Highly Rigid Bridge Structure
The cast iron crossbeam and bridge structure design suppress cutting vibration and deformation.
Powerful Drive System
An 18.8kW main motor provides continuous and stable power, supporting saw blades up to 500mm.
Intelligent Automated Measurement
Integrated vision positioning and thickness detection systems compensate for variations in stone thickness in real time.
Efficient Material Utilization
Automated nesting and CAM optimization algorithms reduce waste.
Detail Images
Control system -- CNC
Brand: Esa
Original: Italy
A high-quality CNC system features a touch screen for simple setup and automated operations.
Software - Pegasus CAD/CAM
Brand: Pegasus
Original: Italy
Simple to Operate -- It's very straightforward, needing no special computer expertise.
Slab Image Capture (Optional)
The app enables users to capture and modify a photo of the slab by fixing lens distortions and adjusting it. Once the image is obtained, it becomes easier to align shapes on the slab, minimizing material flaws and pinpointing the areas that require machining. Additionally, the edges of the slab can also be assessed geometrically.Slab Image Capture (Optional)
Blade Presetting Unit (optional)
Automatically measuring blade diameter and diamond tool

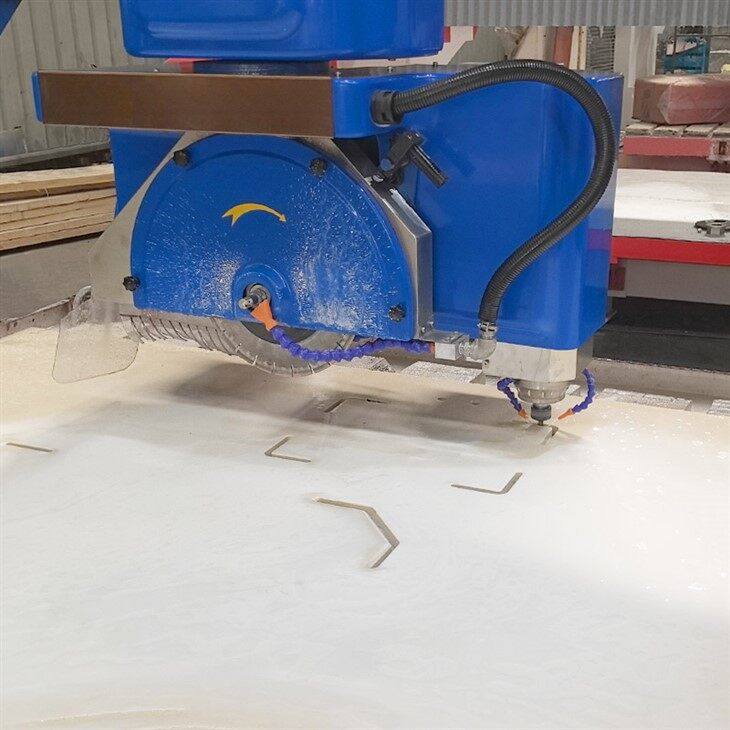

Sole Engraving Module (Optional)
* Type: electric spindle
* Rotating speed: 0-24000 rpm
* Power: 5.5 kw
Slab Thickness Detector (optional)
Origin: China

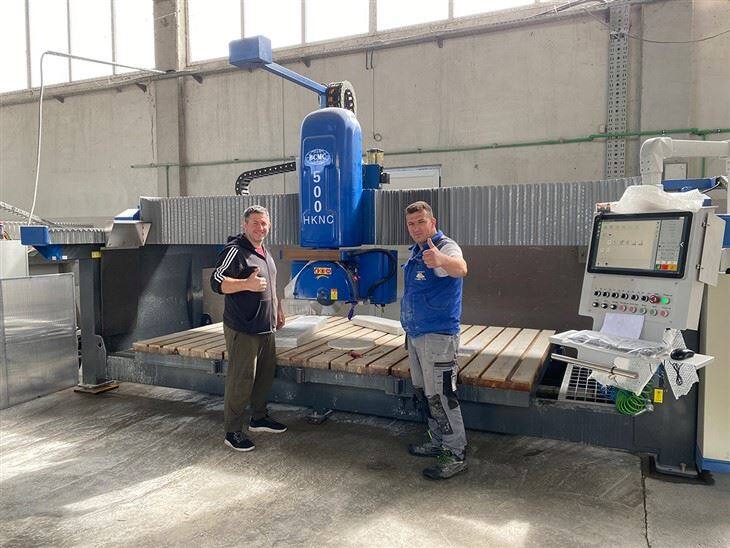

Customers' Spot
